High resistance and appealing design

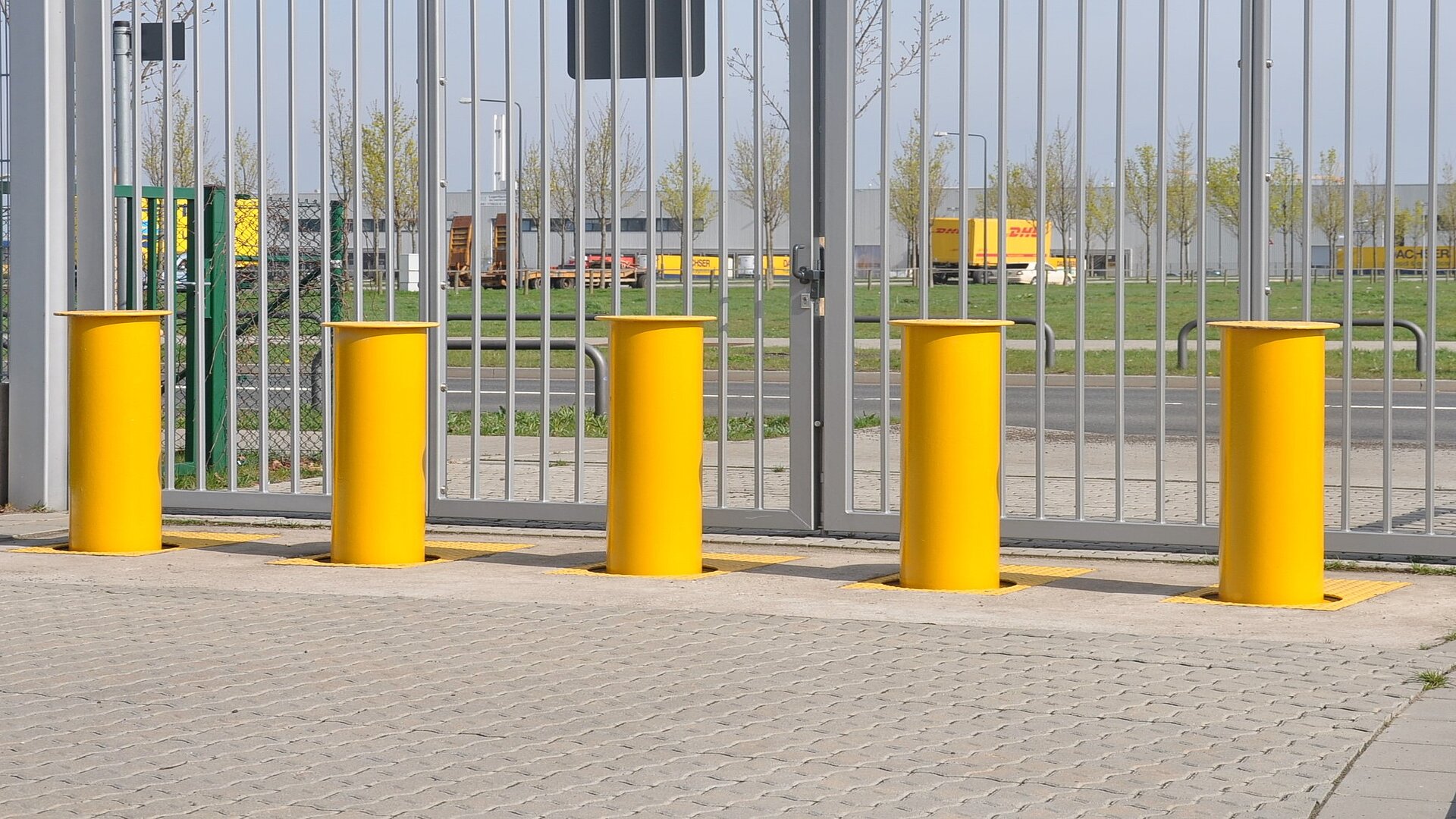

Anti-terror-bollards by SÄLZER available as fixed or flexible (automized) unit- offer protection against violent impact of all kinds of vehicles. Blocked area may be defined individually by distance between bollards and number of units.
Each bollard is characterized by high stability and resistance without sacrificing a decorative design. The design can be individually adapted to the historical circumstances of a building.
Facts at a glance: Automatic bollard
| Material | High grade steel, hot dipped galvanized. Optional: stainless steel design. |
| Certification level | Available according to the ASTM F2656-07 (SD-STD-02.001 is incorporated) M50, K12 level, IWA 14-1 2013, PAS 68:2013. |
| Primary Logic Controller | Siemens S7 |
| Drive | Electro hydraulic, 400 V hydraulic power unit is housed at same location of bollard assembly. Optional remote installation possible. |
| Operation | Separate control panel. Compatible with many access control systems. Optional manual hand pump. |
| Standard opening and closing time: | Standard: 4-5 seconds (adjustable) Optional: emergency function in 2-3 seconds |
| Standard foundation | 51 inches (1,300 mm) |
| Standard size | Bollard height 35 inches (900 mm) Diameter: 11 inches (273 mm). Other diameters available upon request. |
| Bollard blocking width | One Bollard system consists of 1 – 6 bollards per HPU. Various systems could be combined. |
| Surface | Galvanized, primed, powder coated. Various forms, colour highlighting and planking upon request. |
| Further options | Signal and security lighting, traffic lights, heater for HPU and for bollard foundation, induction loop detectors, access control, card readers and more, extreme weather packet: -45 up to + 50 degrees. |
Higher security requirements can also be met at the customer's request. We would be happy to help put together your security concept in a personal consultation.
Personal consultation
Every building project is unique and the perfect high-security solution depends on a number of different factors. Contact us now and we will work out your requirements together, so that you can have the perfect security system and protect what is yours and what is important.
