Certified high security and functionality

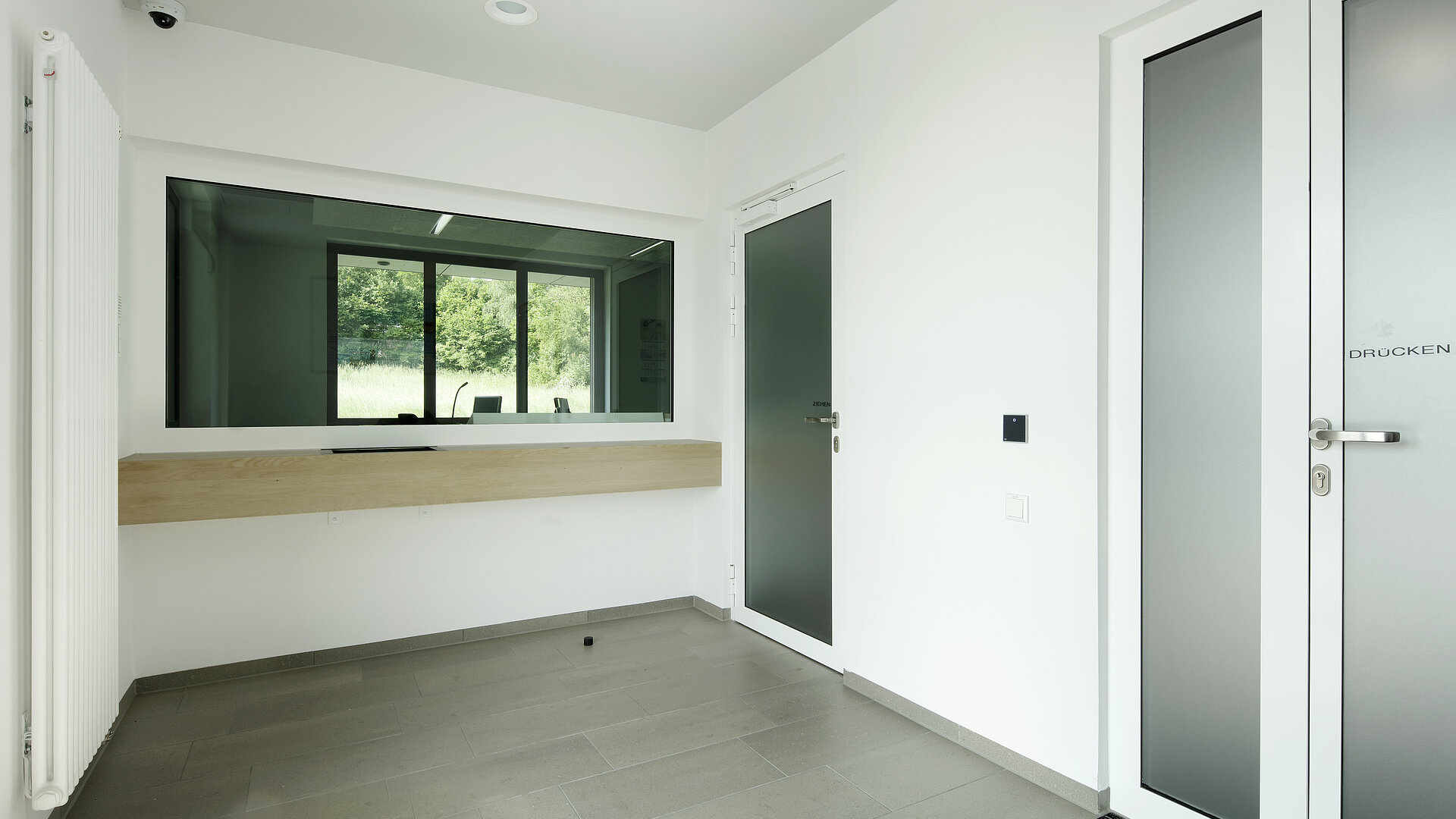

SÄLZER offers transaction windows that are ready to install in a range of different designs, materials and security levels. The construction and security technology can be individually adapted to a range of different reception areas, such as in embassies, police stations and judicial facilities, industrial companies and other high-security buildings.
You can choose from the S1es aluminum facade, S2es-w aluminum windows,S6es-w aluminum windows and the SECUFIRE® tubular steel frame series.
Protection concepts
The customised and standardised, ready-to-install versions of the transaction windows, consisting of fixed light, cladding and transfer tray, can offer bullet resistance up to the highest resistance class FB7-NS, as well as burglar resistance up to the highest resistance class RC6 (depending on the series selected). Fire and smoke protection can also be integrated into the SECUFIRE steel tubular frame series.
Design and installation
- The window is fabricated in aluminium or steel, with a range of different surfaces available for individual designs.
- Various types of transfer tray and individual communication and video technology.
- Simple installation thanks to high level of prefabrication at SÄLZER.
- Installation in a range of different wall structures, such as masonry or reinforced concrete.
- Available as an internal or external unit, depending on the selected series.
Security according international standards & individual requirements
Transaction window: resistance classes depending on the selected series
In accordance with DIN EN 1627-1630, glazing in accordance with DIN EN 356, the level is depending on the selected material and series: S1es aluminium façade, S2es-w and S6es-w aluminium window, SECUFIRE® steel series.
In accordence with DIN EN 1522-1523, glazing in accordence with DIN EN 1063, the level is depending on the selected material and series: S1es aluminium façade, S2es-w aluminium window series, S6es-w aluminium window series, S4 steel series and SECUFIRE® steel tubular frame series.
Depending on the selected material and series, blast tests e.g. with explosives of 500 kg, distance 24 m. Classifierd: GSA 2 ("Very High" protection level), ISO B ("No Hazard" hazard rating).
If the steel series are selected, depending on the design variant and further protection, fire protection up to T90/EI90.
If the steel series are selected, depending on the design variant and further protection, smoke protection up to S200.
Higher security requirements can also be met at the customer's request. We would be happy to help put together your security concept in a personal consultation.
Types | installation depth | glazing
Types
The windows are combinable with all products within the SYSTEM SÄLZER.
Profile depth | glazing
Depends on the selected material and series.
Aluminium: facade S1es series, S2es-w series, S6es-w series. Steel SECUFIRE®series.
Surface
Depending on the selected material: primed, painted, anodised or powder coated, customised colour design, over clad with timber, stainless steel, stone, bronze and other options.
Performance according to DIN EN 14351
Depends on the selected material and series:
Aluminium: series S2es, series S6es. Steel: series SECUFIRE®
Personal consultation
Every building project is unique and the perfect high-security solution depends on a number of different factors. Contact us now and we will work out your requirements together, so that you can have the perfect security system and protect what is yours and what is important.
