Security made of aluminium and glass

Security doors Series S6es – The elegance and variety of aluminium profile design combined with reliable forced entry resistance (up to RC4) and bullet resistance (up to FB4) in mid-range safety classes. Expansive glazing and narrow profiles for safe and highly functional doors and elements with the look and feel of regular, non-security door systems.

The doors can be designed elegant e.g. for the use in an embassy or private house as well as for tough applications such as barracks. They offer additionally optimal insulation values.

Safety classes:
einbruchdurchschusssprengwirkungshemmung

* higher security requirements see aluminium doors series S2es

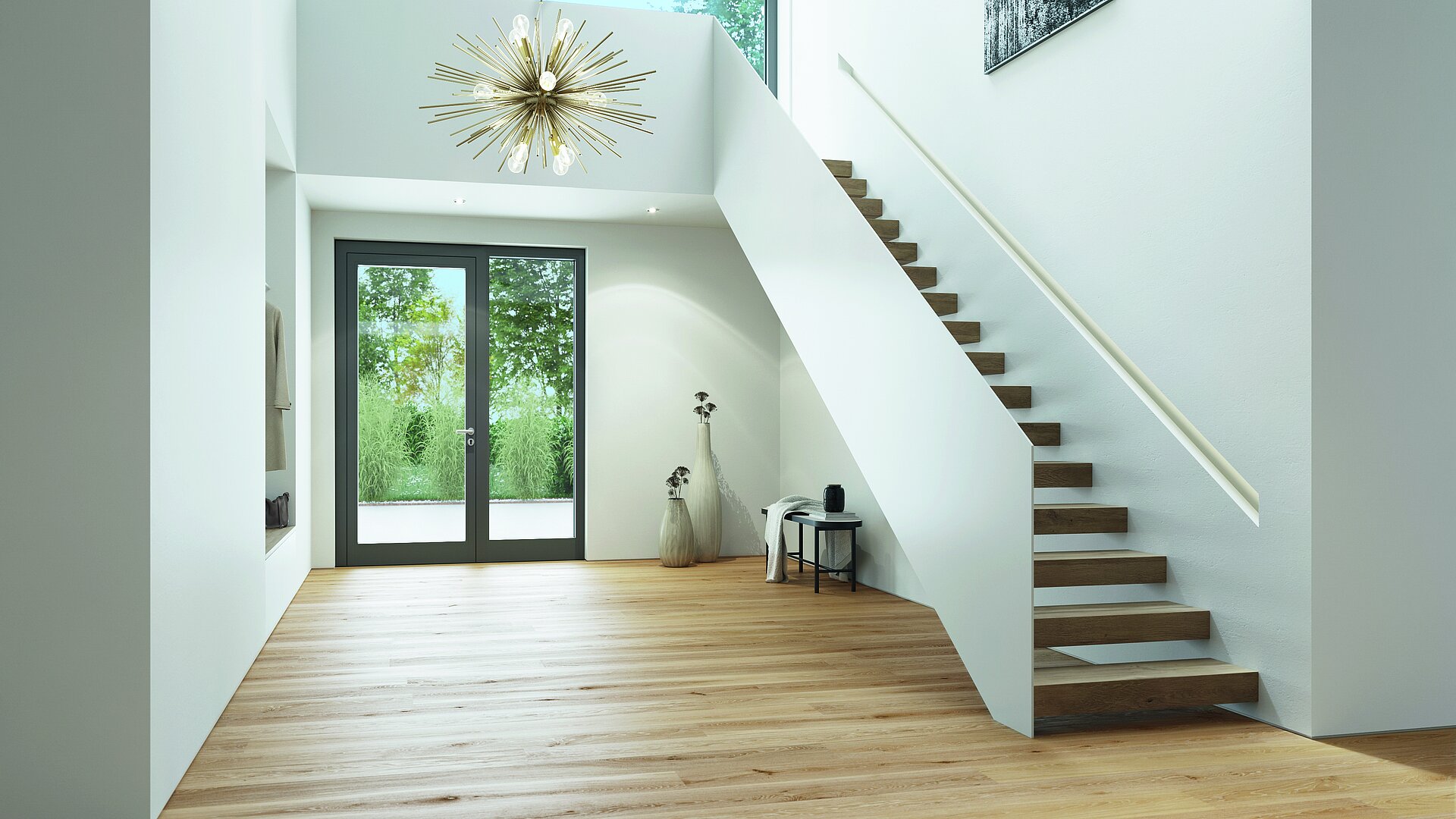

  • Glazed double door.

    Glazed double door.

  • Glazed double door, intergrated in a facade.

    Glazed double door, intergrated in a facade.

  • Application: airport.

    Application: airport.

  • Security aluminium door series S6es.

    Security aluminium door series S6es.

» Technical data

Security doors aluminium series S6es
Types | Installation depth | glazing
designvarianten
Types
F01 FF 1F geschnittenF02 FE 1F DK geschnittenF03 FE 1F D geschnittenF04 FE 1F K geschnittenF05 FE 2F DK DK geschnittenF06 FE 2F DK D geschnittenF07 FE 5F FF K OL FF DK OL D geschnitten
The doors are combinable with all products within the SYSTEM SAELZER.
profilbautiefe verglasung
Profile depth | glazing
Frame: 115 mm | glass thickness up to 80mm.
hoehe und breite
Sizes
Large doors are tested e.g. single door forced entry resistant in level RC4, frame measurement 1.700 x
3.000 mm. Recommended door size up to 1.250 x 2.500 mm (size depends on the door leaf weight and on the place of installation, bi-metal effect).
oberflaeche
Surface
Anodised or powder coated, over clad with timber, stainless steel, stone, bronze and other options.
Security according international standards & individual requirements
einbruch
Forced entry resistance*
According to DIN EN 1627-1630 resp. glazing according to DIN 356
up to RC4 resp. glazing up to P8B
durchschuss
Bullet resistance*

According to DIN EN 1522-1523 resp. glazing according to DIN EN 1063
up to FB4-NS resp. glazing up to BR4-NS.

sprengwirkungshemmung
Blast resistance*
According to DIN EN 13123 up to EXR2 and according to customised requirements, various open range tests with different explosive charges (such as 100 kg or 500 kg charge), reflected pressure up to 790 kPa (7,9 bar), glazing composition according SALZER requirements, inward opening door tested with a reflected pressure of 272 kPa (2,72 bar) GSA2.
Performance according to DIN EN 14351
windlast
Resistance against windload
Depending on the type up to level C5 (test pressure: 2.000 Pa)

schlagregen
Water tightness

Depending on the type up to level E 750 (test pressure: 750 Pa)
luftdurchlaessigkeit
Air permeability
Depending on the type up to level 4 (test pressure: 600 Pa)
stossfestigkeit
Impact resistance
Depending on the type up to level 5 (drop height: 950 mm)
waermedurchgangskoeffizient
Thermal insulation
Depending on the type up to UW 1,4 W/m²K
schall
Sound insulation
Depending on the type up to RW 47 dB
dauerfunktion
Life cycle test
500.000 open and closing cycles with 350 kg weight of the leaf.
Further technical properties
Locks | Fitting All locks which are approved in the tested security class of the door. Mechanical, electro-mechanical or motorized locks, single or multiple locking. Doors for emergency exits tested according to DIN 179 and DIN 1125 (panic bar) up to RC4. Applicable as interlocking door with special control system possible. All tested and certified fittings can be in-stalled in the respective security level.

Hardware | weight

Hinges for heavy weights. Easy operating despite heavy wing weights. Hinges bear wing weights up to 400 kg, up to 600 kg with floor pivot.
Threshold | floor gasket Threshold or adjustable floor gasket. Barrier free entrances and exits are possible.
Profile width
Despite high security properties small profile width.
Glazing beads Due to the stable design, no visible screwing of the glazing bead is required and no glueing of the glazing is necessary, this offer a natural glazing rebate ventilation and water circuit.
Installation Installation in several building materials and in the facade series S1 is permitted. Bullet resistance: a bullet resistant wall connection is tested and recommended

*higher requirements upon request.
